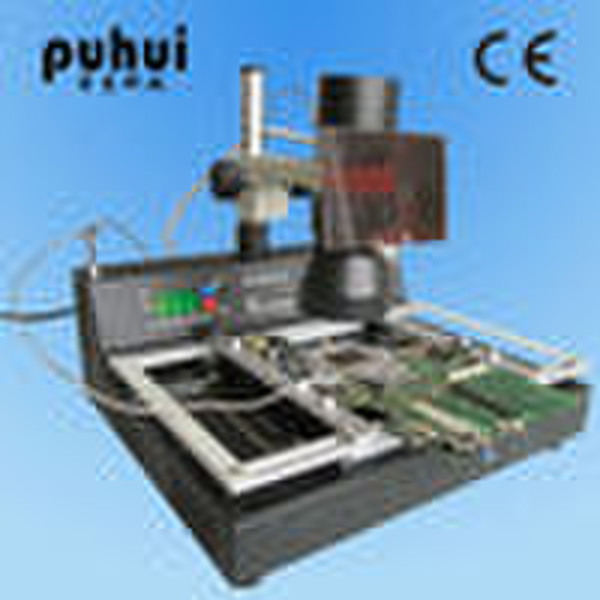

BGA rework station,infrared rework station,rework

BGA soldering station T-870A Features 1.Adopt infrared weld technology which independent exploration. 2.Use infrared heat,easy to cut through,heat proportion piercing tradition weld machine with sirocco. 3.Easily operate.Just need one day training.Can operation this machine. 4.Don't need weld tools.This machine can weld all the component of 35x35-50x50mm. 5.This machine has 800W heating system.widely to240x180mm. 6.Infrared heating don't have sirocco flow. Don't impact perimeter small component.Can suitable for all of the component,especially Micro BGA component. 7.Definitely can satisfy the computer, the notebook, the electricity swims and so on the BGA sealing off/repairs to requestSpecially especially suits to the computer north and south bridge. Technic parameter Work floor size360X240mm Rated voltage and frequencyAC220-230v 60/50Hz Complete machine power1000W Infra-red lamp body power150W Preheating chassis power800W Infra-red lamp body heating sizeΦ70mm(50x50mm) Preheating chassis preheating size240x180mm Infra-red lamp body temperature adjustable200-350 Preheating chassis temperature adjustable60-200
